Magic Pie Edge (500 Watts)
Magic Pie Edge with BUILT-IN INTERNAL Sinewave Controller
The Fifth generation of Magic Pie Edge with Vector Sinewave controller, updated wire harness, and bluetooth capability.
The proven power and durability of the Smart Pie motor now improved with an all new Sinewave controller and updated wire harness and controls. Sinewave controllers are state of the art controller technology for quiet and smooth powerful acceleration and ride. The wire harness is military grade with plug and play plugs. The Bluetooth Device allows you to connect directly to the motor. Along with using a Smart Display and USB cable, you can use also your Android or iOS device to program the motor and mount it to your bike and use it to read current, speed, power, distance, etc.
- The latest version of the Magic Pie Edge kit
- Built in sine wave controller
- Can be used with 24 -52v battery
- 22 amp controller for up to 750 watts of power, 500 watts continuous
- Programmable with optional cable or bluetooth
-
Tire Compatibility
-
- Regular Rim: 1 inch to 2.3 inch
- Casted Rim: 1.95 inch to 2.75 inch
-
Watch this video for more information on the kit: Magic Pie Edge Kits For a wealth of Magic Pie Edge videos for information, installation, and upgrading check out this page: Click Here
Installation:
Visit our Instructions for detail installation guides and videos
Kits Include:
- Magic Pie Edge motorized wheel with brushless gearless hub motor.
- Built-in internal controller for a quick and easy setup.
- Double-wall aluminum rim

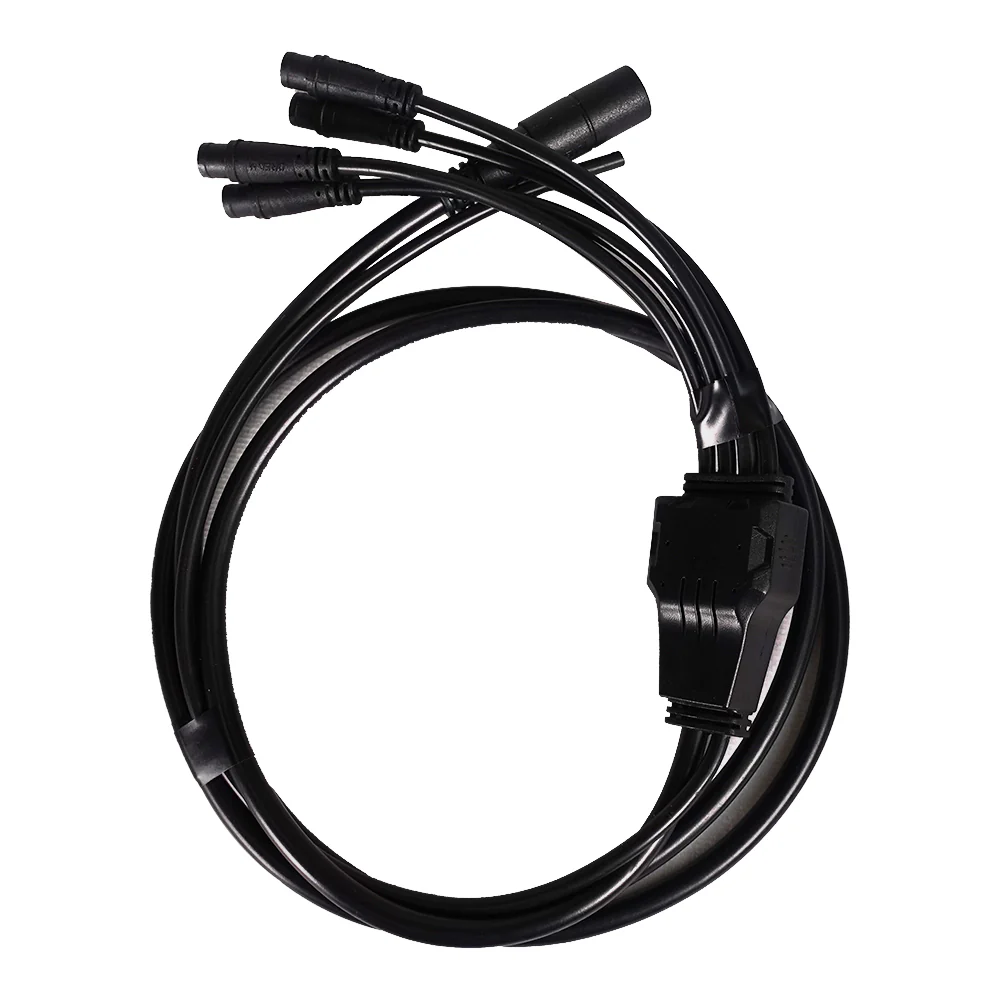

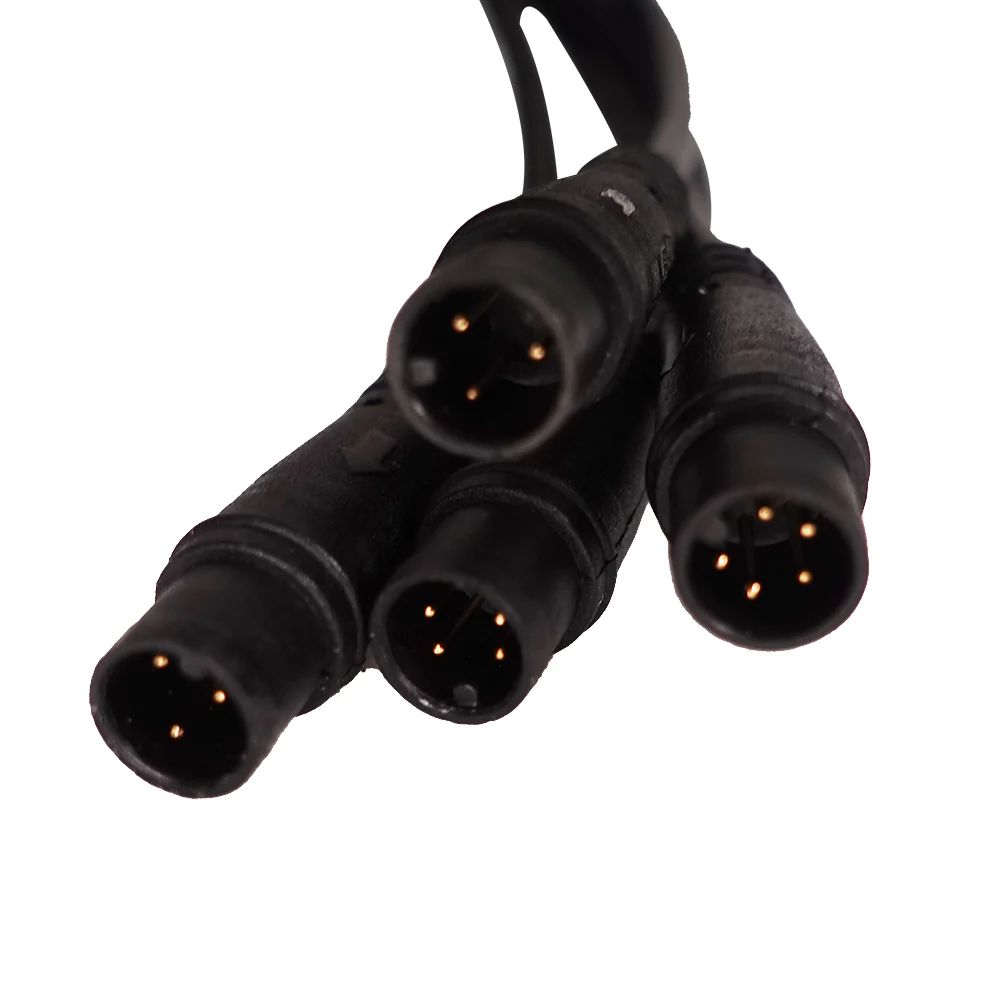

- Waterproof military grade easy connect wiring harness
- Thumb OR twist throttle
- Power brake levers for regenrative braking
- Two button switch for cruise control and optional horn or light
Optional items:
USB Cable: For programming the motor to set voltage, speed, power. etc, you need one of these. Download the software here.
Smart Display: A nice LCD Display for mounting on the handle Bars Displaying Speed, distance, power, etc. Also a Switch for adjusting pedelec settings if you are using one.
Bluetooth device: Turn your Android or iOS device into your own Smart display with all the same features. Download the software here.
Torque Arm: Front wheels must use Torque arms. If you don't have any at least order one, two is better. Rear torque arms are optional but still recommended for safety.
Pedlec (Pedal Assist): Pedal assist, also referred to as pedelec, is a mode that provides power only when you are pedaling. If you are used to riding a traditional bike, the pedal assist mode has a more intuitive feel compared to the throttle mode.
Battery Options:
- This kit comes with everything you need to convert your bicycle minus battery and charger which you can add now or later.
- Any of our 24, 36, 48, or 52 volt batteries will work with this kit.
- 52 volts will get you more power and higher top speed.
Magic Pie Edge with BUILT-IN INTERNAL Sinewave Controller
The Fifth generation of Magic Pie Edge with Vector Sinewave controller, updated wire harness, and bluetooth capability.
The proven power and durability of the Smart Pie motor now improved with an all new Sinewave controller and updated wire harness and controls. Sinewave controllers are state of the art controller technology for quiet and smooth powerful acceleration and ride. The wire harness is military grade with plug and play plugs. The Bluetooth Device allows you to connect directly to the motor. Along with using a Smart Display and USB cable, you can use also your Android or iOS device to program the motor and mount it to your bike and use it to read current, speed, power, distance, etc.
- The latest version of the Magic Pie Edge kit
- Built in sine wave controller
- Can be used with 24 -52v battery
- 22 amp controller for up to 750 watts of power, 500 watts continuous
- Programmable with optional cable or bluetooth
-
Tire Compatibility
-
- Regular Rim: 1 inch to 2.3 inch
- Casted Rim: 1.95 inch to 2.75 inch
-
Watch this video for more information on the kit: Magic Pie Edge Kits For a wealth of Magic Pie Edge videos for information, installation, and upgrading check out this page: Click Here
Installation:
Visit our Instructions for detail installation guides and videos
Kits Include:
- Magic Pie Edge motorized wheel with brushless gearless hub motor.
- Built-in internal controller for a quick and easy setup.
- Double-wall aluminum rim
- Waterproof military grade easy connect wiring harness
- Thumb OR twist throttle
- Power brake levers for regenrative braking
- Two button switch for cruise control and optional horn or light
Optional items:
USB Cable: For programming the motor to set voltage, speed, power. etc, you need one of these. Download the software here.
Smart Display: A nice LCD Display for mounting on the handle Bars Displaying Speed, distance, power, etc. Also a Switch for adjusting pedelec settings if you are using one.
Bluetooth device: Turn your Android or iOS device into your own Smart display with all the same features. Download the software here.
Torque Arm: Front wheels must use Torque arms. If you don't have any at least order one, two is better. Rear torque arms are optional but still recommended for safety.
Pedlec (Pedal Assist): Pedal assist, also referred to as pedelec, is a mode that provides power only when you are pedaling. If you are used to riding a traditional bike, the pedal assist mode has a more intuitive feel compared to the throttle mode.
Battery Options:
- This kit comes with everything you need to convert your bicycle minus battery and charger which you can add now or later.
- Any of our 24, 36, 48, or 52 volt batteries will work with this kit.
- 52 volts will get you more power and higher top speed.
