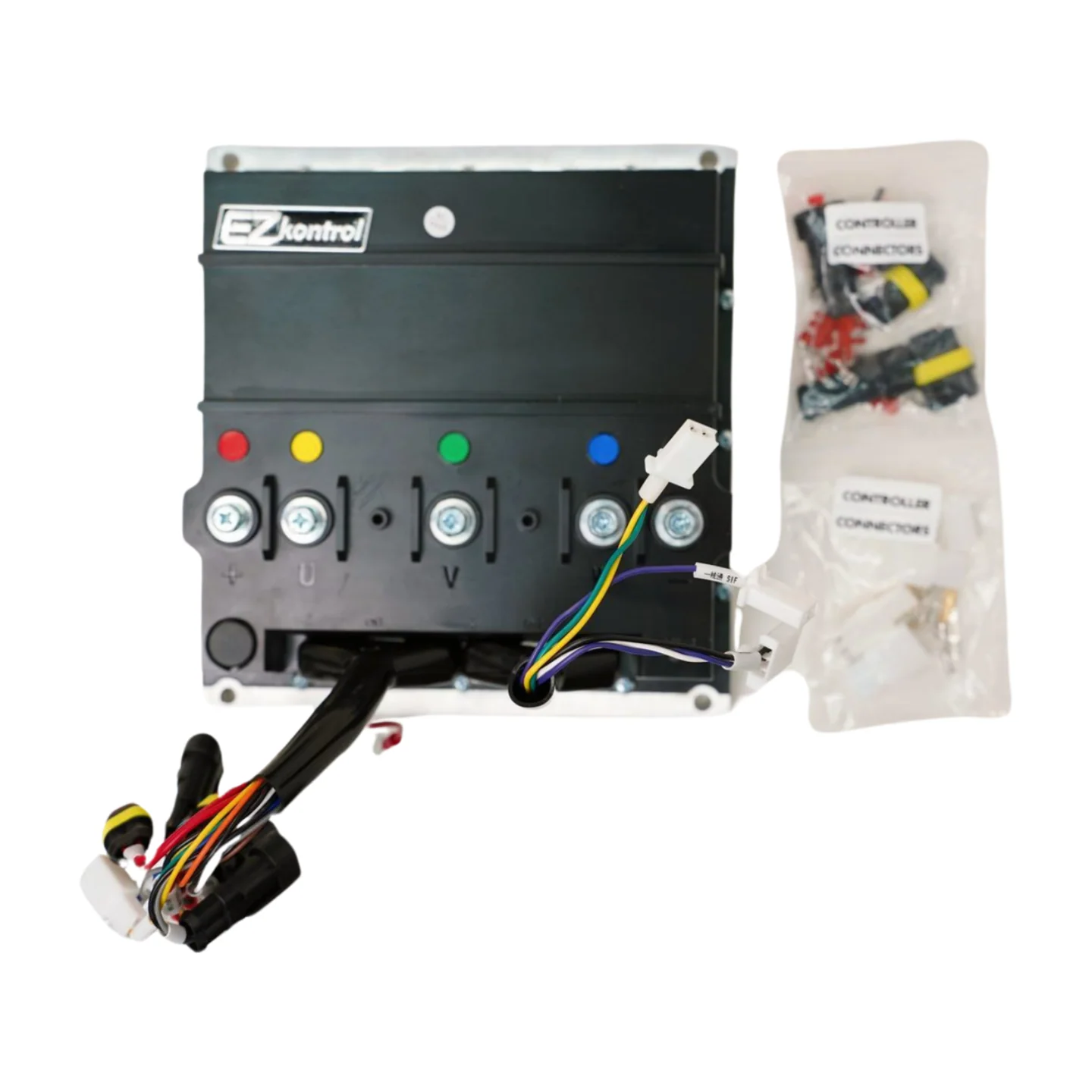

EZkontrol 72 Volt Universal BLDC Motor Controller
EZkontrol 72V Universal BLDC Motor Controller offers reliable performance for electric vehicles, providing smooth control and high efficiency for various motor setups.
Introducing our newest addition - the High-Performance EZkontrol BLDC Sinewave Controller, the ultimate solution for managing motor systems. Our comprehensive controller is equipped with advanced features, making it the optimal choice for various applications. The flagship "E" series offers up to 40KWs of power at a maximum of 240V(dc) or 2000 Amps, ensuring smooth and efficient driving for your brushless DC motors. With powerful ARM 32-bit Cortex-M4 core processors, it delivers lightning-fast Real-Time control and monitoring via Bluetooth. No need for a dedicated programming device or USB cables, our intuitive automatic self-learning calibration feature allows for easy setup on your mobile phone. With hundreds of programmable control parameters, you can fine-tune your drive system to meet your expectations. Plus, you can choose between Sine Wave or Square Wave control with the same controller, and easily update firmware online via your smartphone. Our EZkontrol controllers support multiple communication protocols, including CAN
Motor Compactibility:
EZ Controllers support BLDC motor with hall sensor or ABZ incremental encoder with PWM signal
Download EZkontrol User's Manual Here (.PDF format, 4.34MB)
EZkontrol Bluetooth BLDC Programming Guide (Android/IOS)
EZKontrol CAN Communication Protocol
Drawings of EZkontrol (Step Files)

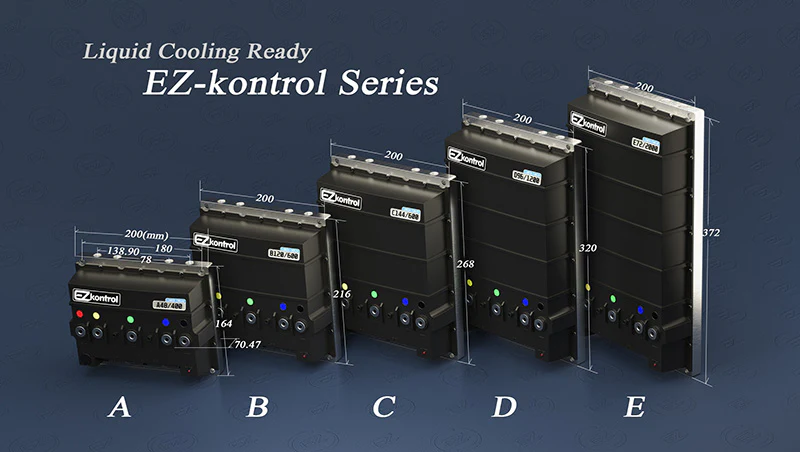

Wide Coverage of Power Range: 48Vdc-240Vdc | 400-2500 Amps | 1KW-40KW
|
Model No. |
Rated Voltage (Vdc) |
Max. Voltage (Vdc) |
Max. Phase Current (A) |
Rated Phase Current (A) |
Max. Bus Current (A) |
Rated Motor Power (KW) |
||
|
EZ-A48400 |
48V |
72V |
400 |
160 |
200 |
2-4 |
||
|
EZ-A48500 |
500 |
200 |
250 |
3-5 |
||||
|
EZ-B48800 |
800 |
320 |
400 |
5-8 |
||||
|
EZ-B481000 |
1000 |
400 |
500 |
6-10 |
||||
|
EZ-C481200 |
1200 |
480 |
600 |
7-12 |
|
|||
|
EZ-C481500 |
1500 |
600 |
750 |
9-14 |
||||
|
EZ-E482000 |
2000 |
800 |
1000 |
12-19 |
|
|||
|
EZ-E482500 |
2500 |
1000 |
1250 |
14-24 |
|
|||
|
EZ-A72400 |
72V |
95V |
400 |
160 |
200 |
3-6 |
|
|
|
EZ-A72500 |
500 |
200 |
250 |
4-7 |
|
|||
|
EZ-B72800 |
800 |
320 |
400 |
7-12 |
|
|||
|
EZ-B721000 |
1000 |
400 |
500 |
9-14 |
|
|||
|
EZ-C721200 |
1200 |
480 |
600 |
10-17 |
||||
|
EZ-C721500 |
1500 |
600 |
750 |
13-22 |
|
|||
|
EZ-D722000 |
2000 |
800 |
1000 |
17-29 |
|
|||
|
EZ-E722500 |
2500 |
1000 |
1250 |
22-36 |
|
|||
|
EZ-A96300 |
96V |
120V |
300 |
120 |
150 |
3-6 |
|
|
|
EZ-A96400 |
400 |
160 |
200 |
5-8 |
|
|||
|
EZ-B96600 |
600 |
240 |
300 |
7-12 |
|
|||
|
EZ-B96800 |
800 |
320 |
400 |
9-15 |
|
|||
|
EZ-C96900 |
900 |
360 |
450 |
10-17 |
|
|||
|
EZ-C961200 |
1200 |
480 |
600 |
14-23 |
|
|||
|
EZ-E961500 |
1500 |
600 |
750 |
17-29 |
|
|||
|
EZ-E962000 |
2000 |
800 |
1000 |
23-38 |
|
|||
|
EZ-A120300 |
120V |
145V |
300 |
120 |
150 |
4-7 |
|
|
|
EZ-B120600 |
600 |
240 |
300 |
9-14 |
|
|||
|
EZ-C120900 |
900 |
360 |
450 |
13-22 |
|
|||
|
EZ-D1201200 |
1200 |
480 |
600 |
17-29 |
|
|||
|
EZ-E1201500 |
1500 |
600 |
750 |
22-36 |
|
|||
|
EZ-A144200 |
144V |
190V |
200 |
80 |
100 |
3-6 |
|
|
|
EZ-B144400 |
400 |
160 |
200 |
7-12 |
|
|||
|
EZ-C144600 |
600 |
240 |
300 |
10-17 |
|
|||
|
EZ-D144800 |
800 |
320 |
400 |
14-23 |
|
|||
|
EZ-E1441000 |
1000 |
400 |
500 |
17-29 |
||||
|
EZ-A240100 |
240V |
290V |
100 |
40 |
50 |
3-5 |
|
|
|
EZ-B240200 |
200 |
80 |
100 |
6-10 |
|
|||
|
EZ-C240300 |
300 |
120 |
150 |
9-14 |
|
|||
|
EZ-D240400 |
400 |
160 |
200 |
12-19 |
|
|||
|
EZ-E240500 |
500 |
200 |
250 |
14-24 |
|

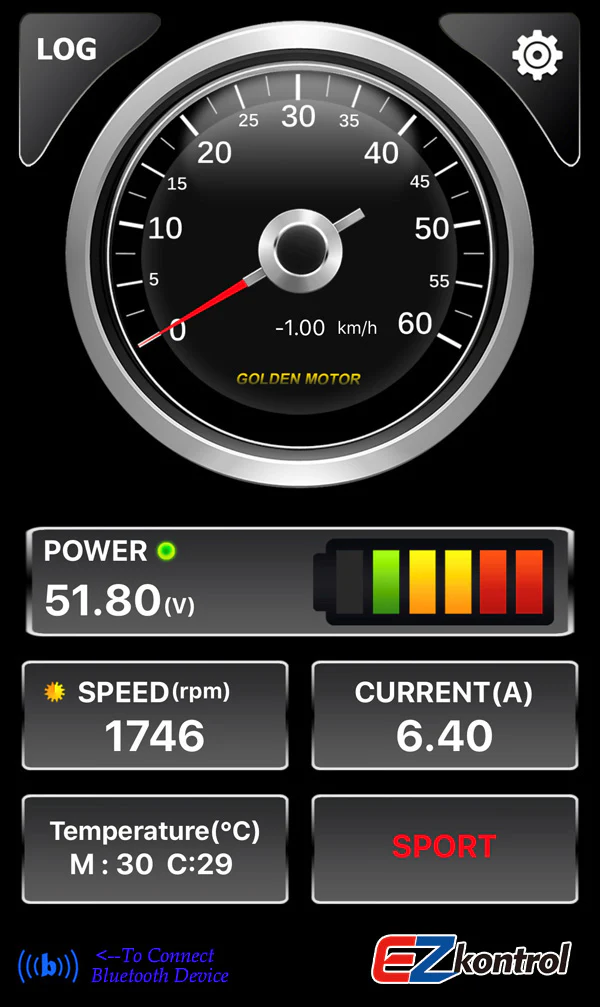

1. Built-in bluetooth, Experience wireless convenience with Bluetooth connectivity, allowing you to monitor and adjust your motor's performance directly from your smartphone or tablet. 2. CAN-BUS Enabled: Enjoy seamless integration with your existing network, thanks to our controller's built-in CAN-BUS support, ensuring rapid and reliable communication between devices. 3. Self Motor Calibrating: Simplify the setup process with our intelligent self-calibrating feature, ensuring optimal performance without the need for complex manual adjustments. 4. Compatible with a variety of motor position sensors: Hall, photoelectric encoder, magnetic encoder and etc. 5. Compatible with a variety of motor temperature sensors, protect the motor from overheating damage. 6. Cruise speed and regenerative braking control 7. Five-level torque, speed, and power can be set separately. 8. Integrated DC contactor controls the circuit, and also other modes available. 9. Advanced and efficient software algorithms, guaranteed hardware circuits, excellent mechanical structure and thermal structure, ensure the stable and reliable quality. 10. PC material V-0 flame-retardant casing cover. 11. IP66 protection grade.
