52v 12.8ah Slim Shark Pack (LG Cells)
LG 52V 12.8Ah DP-5 Battery Pack

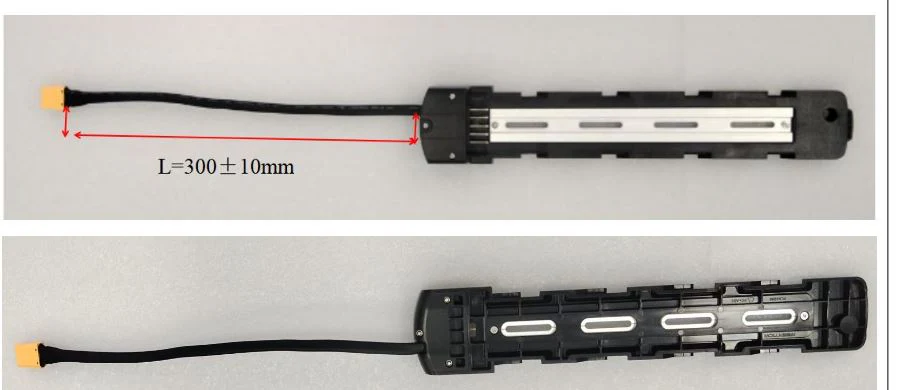

Included: Battery Cradle
| Specification | Details |
|---|---|
| Battery Type | Lithium-ion Battery |
| Watt Hours | 665 Wh |
| Dimensions |
368*90*96mm 14.44*3.54*3.77 inches |
| Configuration | 14 Series 4 Parallel (14S4P) |
| Battery Cells | LG MH1 |
| Battery Weight | 3.5 ± 0.15 kg |
| Built-in BMS | 30A Continuous |
| Maximum Charge Voltage | 58.8 V |
| Discharge Cut-off Voltage | 39.2 V |
| Charge Cycles | ≥500 cycles |
| Charger | 52V 3A Charger |
| Charge Temperature | 0 – 45 °C |
| Discharge Temperature | −10 – 40 °C |
| Output Connector | XT90 |
| Charge Port | Reennew Mini 3-Pin |
| Battery Case | DP-5 Slide Rail Case |
Battery Cutout
Attention
- Do not dispose in fire or heat.
- Do not puncture, damage and disassemble.
- Charge with Li-ion exclusive charger.
How to maintain the battery?
The battery should be stored in clean, dry, ventilated, dark environment. When unused, keep it at half charge and recharge it every 3 to 6 months.
Charging Instructions
The charger’s indicator light will display red while the battery is charging. Once the battery is fully charged, the indicator will change to green.
How to prolong your lithium ion battery?
Recharge your batteries before they are completely dead.
After every 30 charges, allow your lithium based battery to completely discharge before recharging.
What about warranty?
- We provide 12 months warranty
- Product quality guaranteed by PAIC insurance
